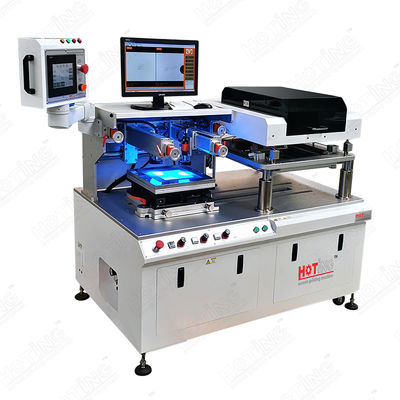

This series is suitable for the printing of various types of chip ceramic substrates, LTCC, MLCC, filters, chip resistors, GPS dielectric antennas, dielectric filters, thick film circuits, sensors, solar cells / monocrystalline silicon polycrystalline silicon and other precision electronic components manufacturing.
Specification
1. High-precision printing effect can be achieved through reasonable design, precise parts processing and digital program setting.
2. The vision system recognizes the marked points of the substrate, automatically locates the deviation of the substrate placement position, and realizes automatic alignment by driving the X, Y, θ three-dimensional table movement, effectively guaranteeing the accuracy of repeated printing and running stability.
3. One-key air pressure fixed screen mode.
4. High-precision imported linear guide rails help the doctor blade maintain a uniform speed.
5. The precision-manufactured alloy workbench has a flatness of ± 10μm to ensure uniform printing.
6. Servo drive system is used to enter and exit the platen to ensure the thickness and uniformity of the printed coating.
7. Install scraper pressure regulator (adjustable from 2 to 5 kg).
8. The compact device shape and low noise design effectively improve the impact on the working space and environment. .
9. Equipped with a reliable three-sided safety protection device to ensure the safety of operators.
10. The body adopts electrostatic spraying and baking paint to ensure the durability and anti-corrosion of the body.
11. The oil-free three-point combination does not produce exhaust oil mist pollution and is suitable for use in clean rooms.
Option:
- Porous ceramic adsorption platform
Parameter
| Model |
HP-2525HA |
| Max printing area |
250 × 250 mm |
| Printing table size |
320 × 320 mm |
| Printing speed |
500cycle/h |
| Max frame size(Out) |
450 × 450 mm |
| Material thickness |
0 - 50mm |
| Printing pressure |
0 - 0.5MPA |
| Squeegee driven |
A.C Motor & Ball Screw |
| Squeegee running speed |
0 – 250 mm |
| Squeegee angle |
60°- 90° |
| Printing table driven |
A.C Motor |
| Printing table adjust |
X/Y = ±10mm Z = 0–50mmθ= 3° |
| Printing table accuracy |
In/Out ±10µm |
| Printing table flatness |
±10µm |
| Repeat printing accuracy |
±5µm |
| Frame fixing |
Cylinder Clamp |
| Printing material fixed way |
Suction by Ring Blower |
| Air pressure |
0.6MPA |
