Tension sensor, Air quality sensors, Pressure sensors(Piezoresistive, Capacitive), Integrated LED lamp holders printer

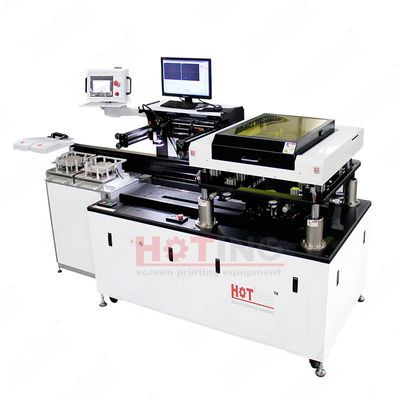

Large Image : Tension sensor, Air quality sensors, Pressure sensors(Piezoresistive, Capacitive), Integrated LED lamp holders printer

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Hoting
Certification:	SGS, CE, ISO9001
Model Number:	PHA-2525

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD EXW CFR FOB per unit
Packaging Details:	Standard export wooden case
Delivery Time:	15-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 Unit per month

Contact Now

Tension sensor, Air quality sensors, Pressure sensors(Piezoresistive, Capacitive), Integrated LED lamp holders printer

Description

Used In:	Thick Film Screen Printing	Application:	Tension Sensor , Air Quality Sensors, Pressure Sensors( Piezoresistive, Capacitive), Integrated LED Lamp Holders

Application scope:

LTCC, MLCC, chip resistors and capacitors, filters, sensors, solar cells/monocrystalline silicon polysilicon, RFID (radio frequency identification system) circuits/antennas, etc., thick film circuit sensors (automotivemilitaryaerospacemedical applications), optical filters etc precision flat electronic components screen printing process.

Feature:

Fully automatic operation / unique design / superior performance / high precision

MODEL	PHA-2525
Max.Printing Size	250 X 250mm
Printing Table Size	320 X 320mm
Max.Frame Size(outer)	450 X 450mm
Printing Product Thickness	0 ~ 50mm
Printing Table Flatness	±10μm
Printing Speed	500 Sheet/H
Repeat Printing Accuracy	±5μm
CCD Lens Adjustment Range	350 X 350mm
CCD Lens Adjustment Accuracy	±10μm
Electric Source	220V 1PH
Air Pressure	0.6MPA
Dimension (W × D × H)	1510 X 1020 X 1530mm
Weight	Approx. 560KG
Can be made by customized

Optional: Auto loader and auto take off system.
