SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits

SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits
SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits

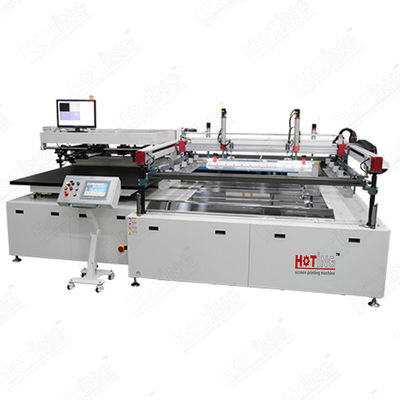

Large Image :  SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits

Product Details:
Place of Origin: Shanghai, China
Brand Name: Hoting
Certification: SGS, CE, ISO9001
Model Number: HP-5040AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD EXW FOB CFR per unit
Packaging Details: Standard export wooden case
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Units per month
Contact Now

SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits

Description
Used In: Thick Film Screen Printing Application: SOFC Fuel Cells, Automotive Fuel Level Sensors, Tension Sensors, Pressure Sensors, LCD, EL, Graphene, Flexible Circuits, Main Substrates

Application scope:

Suitable for slightly large format (approximately 25 inches) thick film high precision automatic printing products, such as SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits, main substrates, etc precision components printing process.



Feature:

Automatic registration / right in and left out type / shovel ink / anti-drip dual-purpose device / screen double lifting function / table displacement function / screen frame displacement function.



Parameter:



MODEL HP-5040AL
Max.Printing Size 500 X 400mm
Printing Table Size 650 X 650mm
Max.Frame Size(outer) 900 X 900mm
Printing Product Thickness 0 ~ 50mm
Printing Table Flatness ±10μm
Printing Speed 300 Sheet/H
Repeat Printing Accuracy ±10μm
Vision Arrangement Precision ±10μm(x,y, θ)
Photography Positioning Area 6 X 6mm
Electric Source 380V 3PH
Air Supply 0.6MPA
Dimension (W × D × H) 1980 X 1130 X 1800mm
Weight Approx. 950KG


Contact Details
Shanghai Hoting screen printing equipment Co.,Ltd

Contact Person: Mr. Andrew Ye

Tel: 18001630038

Fax: 86-21-34121832
