Name: Thick film circuit screen printing machine
Brand: Hoting
SKU: PHP-1515B
Rating: 4.8 (159 reviews)

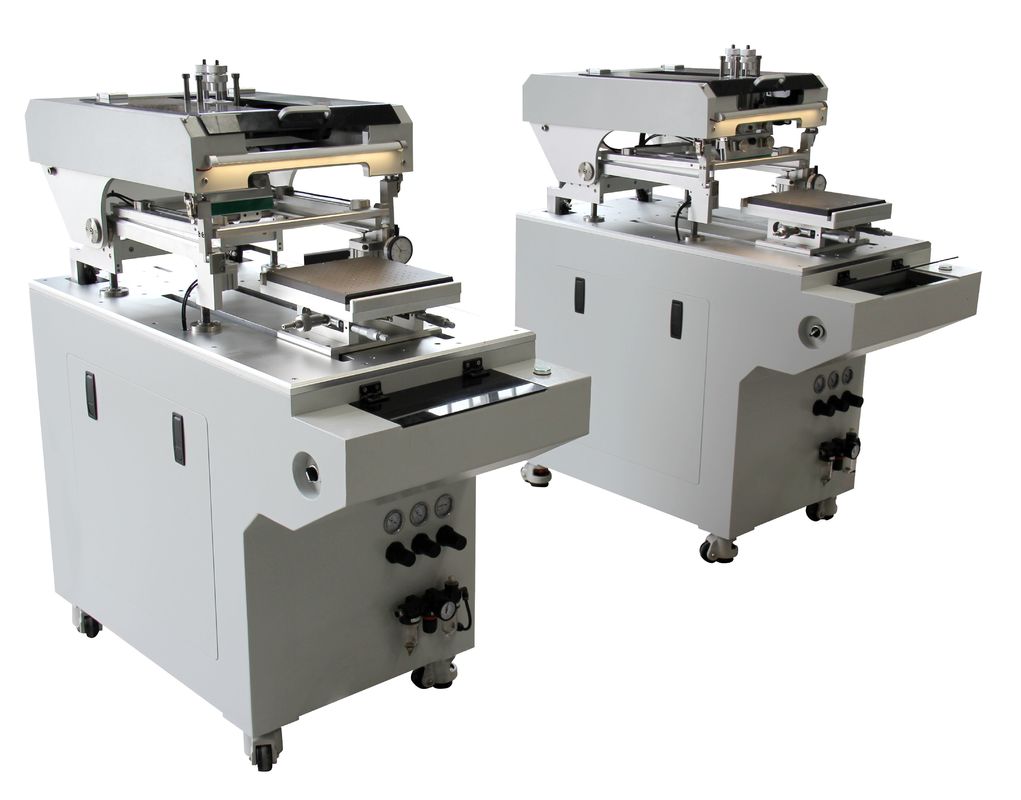

Thick film circuit screen printing machine

Large Image : Thick film circuit screen printing machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Hoting
Model Number:	PHP-1515B

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Solid wooden box
Delivery Time:	20 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability:	10 pieces per Month

Contact Now

Thick film circuit screen printing machine

Description

Usage:	LTCC, Solar Cell, LED Ceramic

Application:

LED ceramic substrate, ceramic capacitor, filter, thick film circuit etc printing.

Specification:

1. High precision printing effect through reasonable design, fine parts processing and PLC program setting.

2. Convenient one touch screen frame clamp.

3. High precision roller screw keep squeegee scraper even speed.

4. Using micro direction adjustment keep printing position accurate and instant.

5. Precision manufacturing alloy workplatform to keep printing evenness.

6. Installing adjustable squeegee pressure regulator.

7. Compact equipment and low noise design improve the influence of working area and environment.

Parameter:

Model	PHP-1515B
Max printing size	156 X 156mm
Max worktable size	236 X 236mm
Printing speed	500 cycle/hour
Max frame size	355 X 355mm
Worktable tolerance	±10um
Printing repeat accuracy	±10um
Weight	Approx. 380kg
Power	220V X 1P X 1KW
Printing material fixed	Suction by Ring Blower

Contact Details

Shanghai Hoting screen printing equipment Co.,Ltd

Contact Person: Mr. Andrew Ye

Tel: 18001630038

Fax: 86-21-34121832
