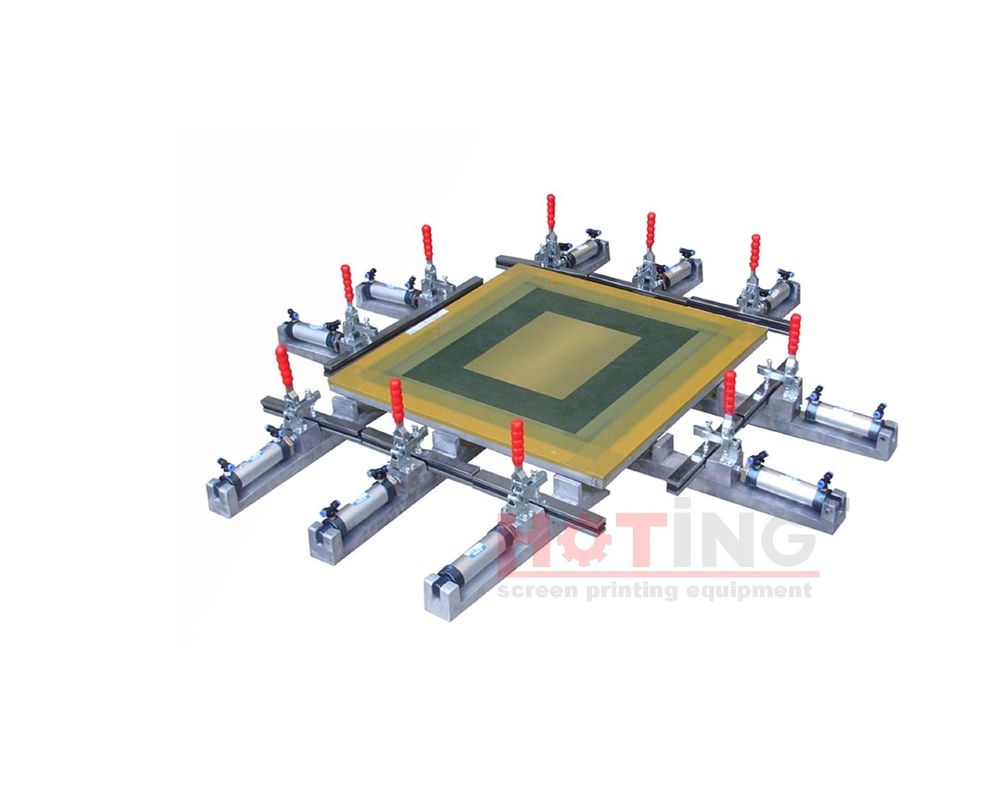

Pneumatic screen stretching clamps

Large Image : Pneumatic screen stretching clamps

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Hoting
Model Number:	TPM-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Solid wooden box
Delivery Time:	5 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability:	200 pieces per Month

Contact Now

Pneumatic screen stretching clamps

Description

Used For:	Mesh Stretching

Application:

This machine is a special equipment in screen printing industry. Pneumatic elements and movable clamps applied to adjust various screen stretching dimensions, featured for level screen surface, evenly tension, high efficiency.

Specification:

·Simple and easy to use

·Offers high-tension stretching

·Rubber grippers are gentle on mesh

·Independently control tension in all directions

·Maximum air pressure 0.7mpa

Parameters:

Model	TPM-300
Max frame size	600 X 900mm
Clamp width	300mm
Clamp quantity	10 units
Each weight	4KG
Cylinder stroke	75mm
Spare parts	Pressure regulator,plastic pipe and valve
★ Special specification can be made for customized size
