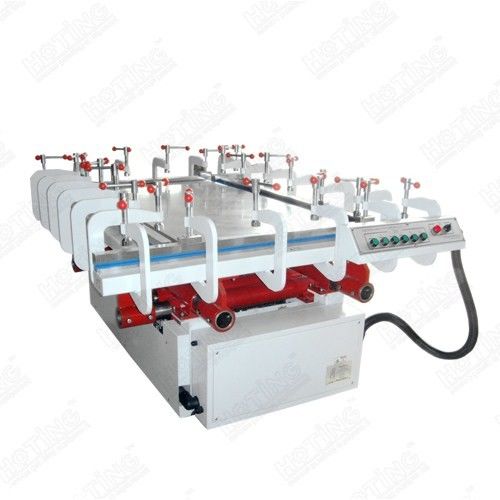

Electrical stainless steel mesh stretching machine

Electrical stainless steel mesh stretching machine
Electrical stainless steel mesh stretching machine

Large Image :  Electrical stainless steel mesh stretching machine

Product Details:
Place of Origin: Shanghai, China
Brand Name: Hoting
Certification: CE, ISO9001, SGS
Model Number: TES-1010 TES-1515 TES-1020
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Solid wooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 10 pieces per Month
Contact Now

Electrical stainless steel mesh stretching machine

Description
Used For: High Tension Screen Stretching

Application:

This series suitable for high precision screen plate stretching, especially applying for stainless steel mesh stretching.



Specification:

(1)Suitable for stainless steel mesh high tension stretching
(2)Special made rubber can hold the mesh
(3)Special heat treatment adjustment screw improve durability.


Parameters:

Model TES-1010 TES-1515 TES-1020
Working table size 800 X 1000mm 800 X 1500mm 800 X 2000mm
Max frame size (OD) 1000 X 1000mm 1500 X 1500mm 1000 X 2000mm
Max stretching length X = 500, Y = 500mm X = 700, Y =500mm X = 700, Y = 700mm
Worktable up-down 100mm
Power supply 220V(380) X 3p X 2kW 220V(380) X 3p X 2.3kW 220V(380) X 3p X 2.3kW
Dimension (W X D X H) 1900 X 1600 X 1550mm 2300 X 1800 X 1550mm 2700 X 1800 X 1550mm
Weight Approx. 650kg Approx. 800kg Approx. 1000kg
★ Can be make for customized frame size and model.
