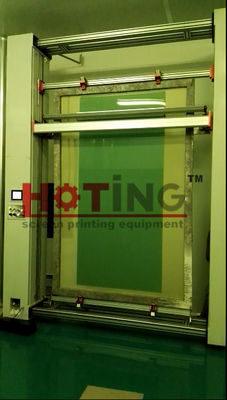

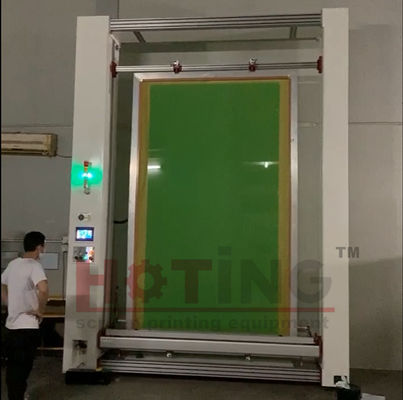

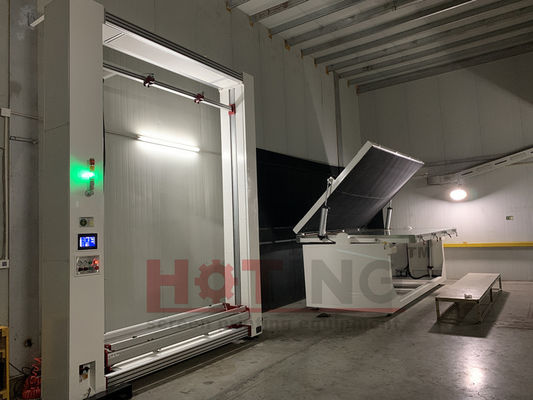

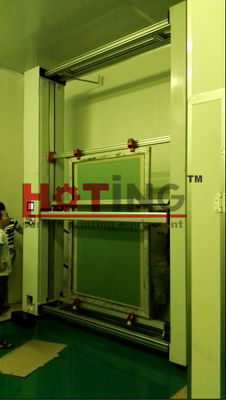

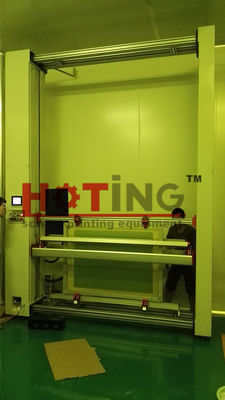

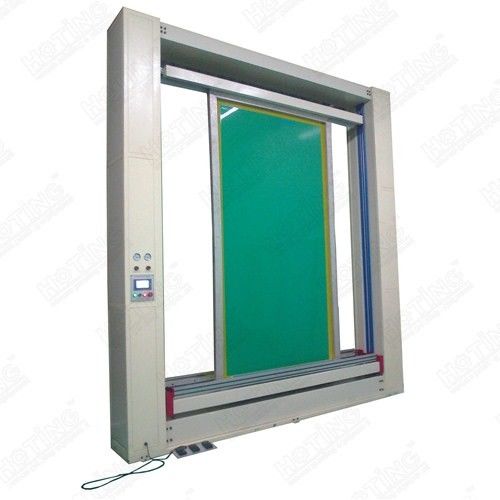

Large format automatic screen coating machine, screen emulsion coater, automatic coating screens

Application Scope:
The series is suitable for screen printing screen high-precision photographic emulsion coating.

Features:
(1) PLC programmable controller and HMI composition as the operating control system.
(2) Full automatic operation via touch-screen settings, ordinary plate-maker can be easy to produce high-quality precision screen.
(3) Fixing clamps / Unlock clamps set by a foot switch which controls the air pressure, easy to load and unload screen.
(4) Coating speed, coating time and a single, double-sided coating can be freely set.
(5) With pressure regulating function, the coating thickness can be controlled via a set number of application times and applying pressure.
(6) While reaching stop position would automatically slow down to 20mm near the frame, no need to fix screen extra edges.
(7) Use of rail steel with special low vibration, ripple-free coating process.
(8) Operating system with multi languages, multiple coating patterns, and detailed parameter settings.
(9) Special corrosion-resistant treatment aluminum scoop coater, with no clearance with the coating structure, maintain stable emulsion coating.

Parameters:
