A Precision Measuring Gauge

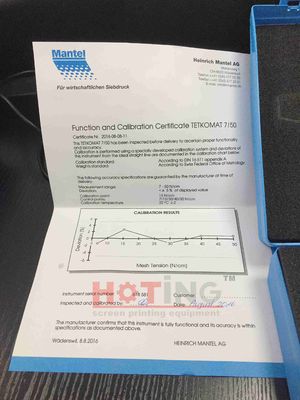

TETKOMAT is calibrated according to DIN 16611 and gives relatively measurement. The TETKOMAT is a precision instrument developed and made in Switzerland. It has roved itself in practice over many years.

SHOCK PROTECTION
The TETKOMAT comes equipped with a shock absorder as a standard feature. This Greatly reduce damages due to impact (as a result of dropping the instrument or incorrect use).

MEASURING RANGE

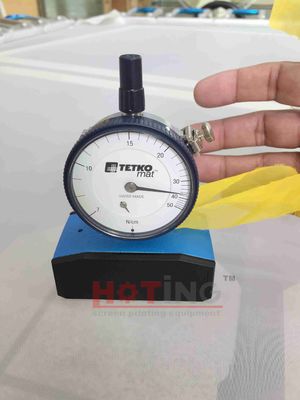

With a measuring range of 7-50 Newton/cm the TETKOMAT provides a reliable, simple and fast means of checking fabric tension in either direction of weave. It completely eliminates the errors which inevitably arise when screens are tensioned by feel and checked by hand.

OPERATIONS
The TETKOMAT operation entirely mechanically. It needs neither batteries nor main power.

THE TETKOMAT IS VERY USER-FRIENDLY:
A simple function control and quick adjustment procedure makes the device easy to work with and eliminates incorrect readings. The TETKOMAT MAke it possible to achieve absolutely consistent tension in each set of screens.

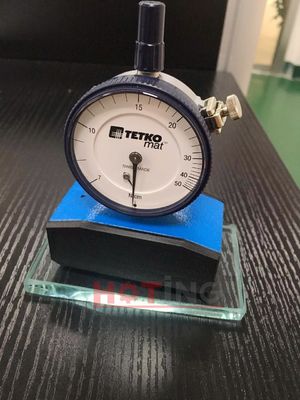

MEASURING PRINCIPLE : MECHANICAL MEASURING OF THE FABRIC'S SAGGING UNDER A CONSTANT FORCE.
MEASURING VALUE : -N/CM (=0.102 KP/CM) NO TIME CONSUMING CONVERSATION OF UNITS
MEASURING RANGE : TETKOMAT 7-50N/CM TOLERANCE 5% OF THE MEASURING RANGE
WEIGHT OF INSTRUMENT : 500G

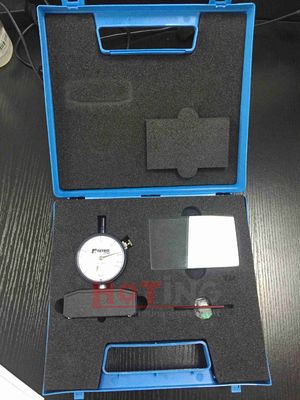

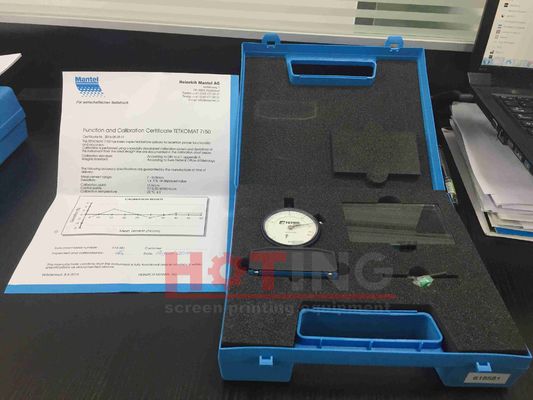

WEIGHT WITHCARRYING CASE AND TEST PLATE : 850G APPROX
DIMENSIONS OF INSTRUMENT : 108X76X44MM

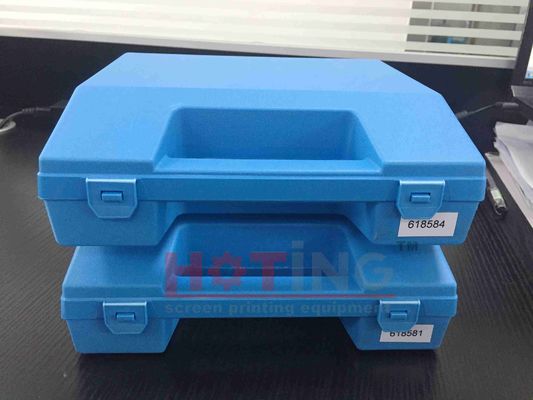

DIMENSIONS OF CARRYING CASE : 229X200X76MM

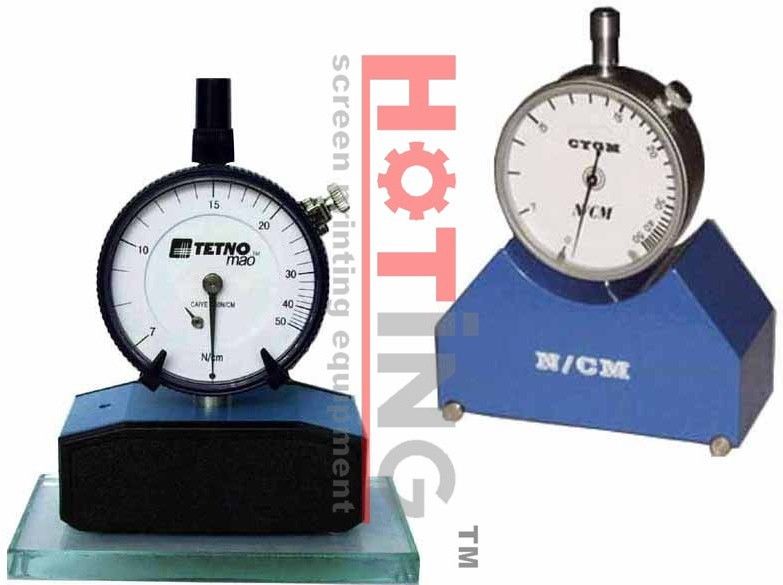

We also have Chinese made tension meter with more competitive price.
