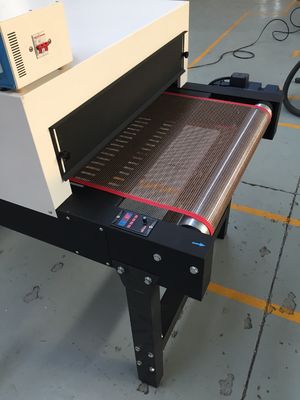

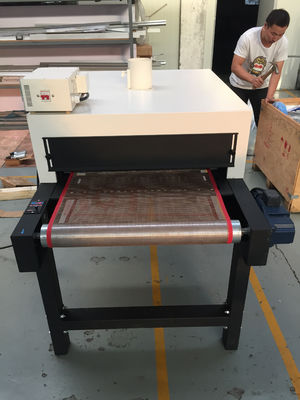

Screen printing tunnel dryer, screen printing conveyor dryer, tunnel dryer screen printing

Large Image : Screen printing tunnel dryer, screen printing conveyor dryer, tunnel dryer screen printing

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Hoting
Certification:	CE, ISO9001, SGS
Model Number:	DIR-650

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD CIF FOB EXW per unit
Packaging Details:	Solid wooden box
Delivery Time:	10 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability:	20 pieces per Month

Contact Now

Screen printing tunnel dryer, screen printing conveyor dryer, tunnel dryer screen printing

Description

Used For:	Post-press Drying

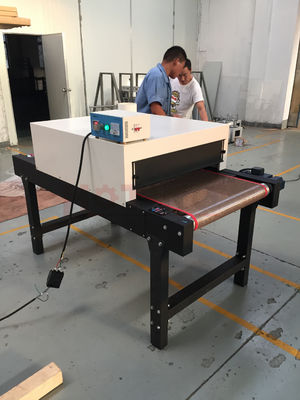

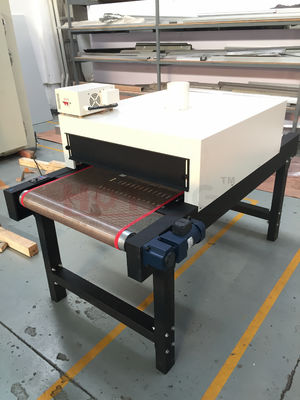

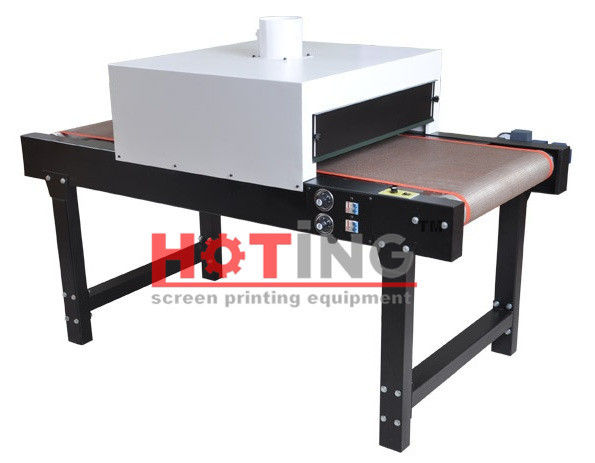

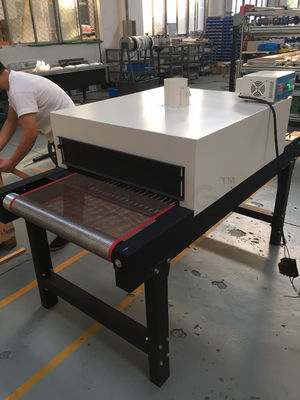

This textile conveyor dryer suitable for drying T-shirt, fabric, garments, paper etc after printing.

Feature:

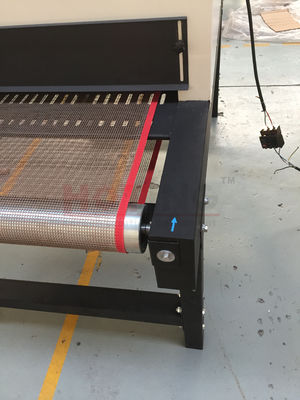

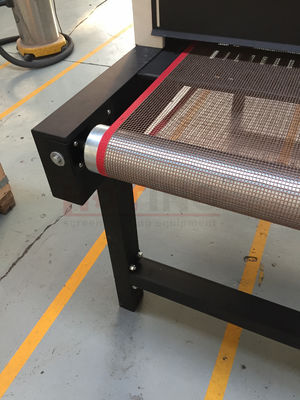

Teflon screen belt, customers' designs are welcome
Motor can be set to any speed and provides a smooth and even motion
IR heating pipe is especially suitable for solidifying heat-set and special type of printing ink

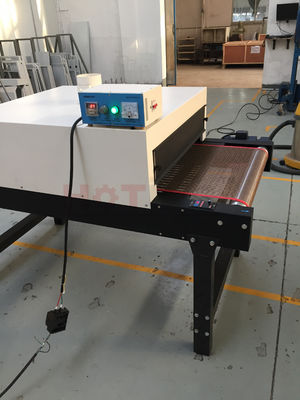

Adjustable belt speed and tunnel temperature controls

Adjustable oven gates height

Adjustable height of infrared lamp

Adjustable the number of work lamps
Optional hot air system

No deviation during dryer working.

Parameter:

Model	DIR-650
Conveyor (LWH)	18009001150mm
Drying area (L*W)	800*900mm
Belt width	650mm
Biggest conveyor width	750mm
Biggest conveyor height	100 mm (adjustable)
Conveyor belt	PTFE (Teflon)
Conveyor belt speed	1-5meter/minute
IR lamps	500W, Eight pieces, Heraeus (adjustable)
Motor	90W(stepless speed regulation)
Power	4,100W, 220V
Weight	180KG
Packing size	19211094cm
