Exposing or laser machine for screen printing, CTS laser screen exposure machine, DTS direct to screen machine

Introduction:

CTS series is the newly researched and developed product of print and exposure in one series in our company. It is based on laser direct image equipment of Digital Micro-Mirror Device (DMD); In the course of patterning, it transforms the patterns to the mechanical data through computer, and transmits to the Digital Micro-Mirror Device. It directly projects the patterns to the photosensitive material so as to compete the exposure.

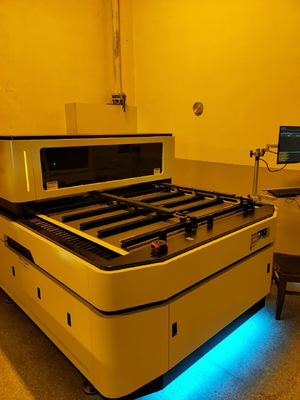

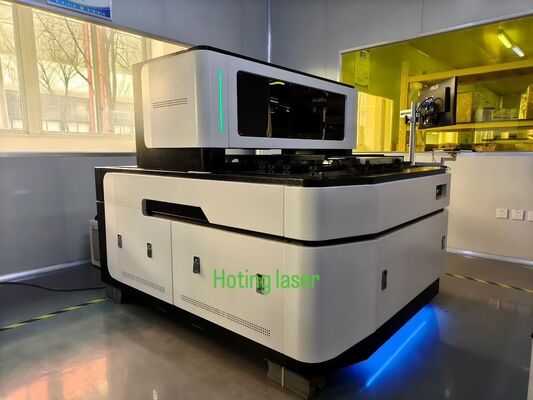

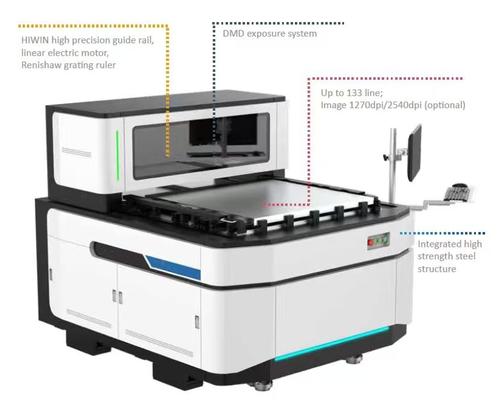

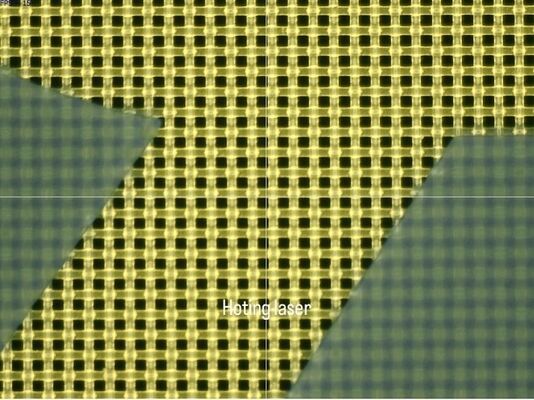

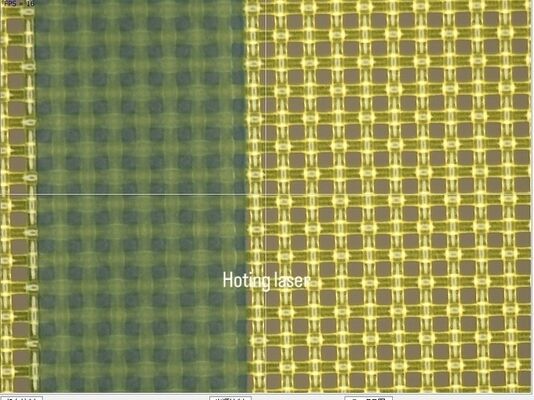

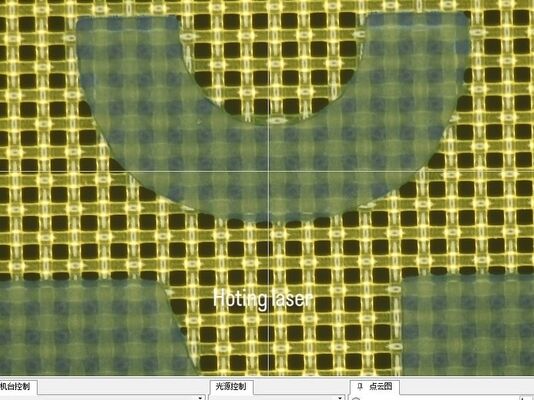

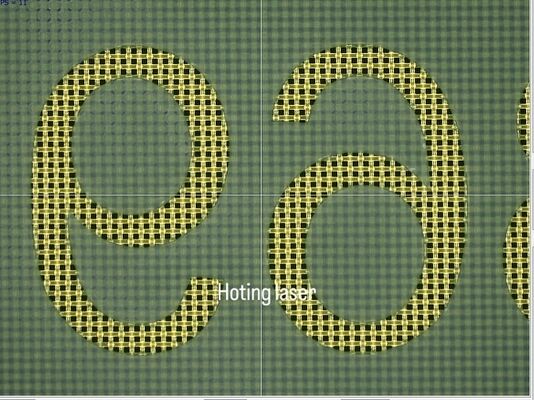

CTS series adopts the high-power 405nm laser light source with a long service life, low energy consumption, and high image resolution; With the cooperation of high-precision linear motor, it performs the high-precision exposure at the silk-screen surface so as to provide the high-resolution, high-efficiency and low-cost products for the customers with the resolution reaches 1270dpi. The stable cooling system ensures the inside of equipment to keep a temperature constant state of 22℃, which guarantees the stability of equipment; The newly designed pneumatic clamping can tightly fasten the screen frame to facilitate the replacement for screen frame of various specifications, which can expose the screen frame of 2600*3600mm at maximum.

Software System

a．Client PC

Client PC is connected with the main output unit through the terminal network. It is the controlling center of system, and controls the platform through the software of equipment so as to perform the work e.g. equipment maintenance, parameter setting, detail drawing, data processing, testing, exposure etc.

b．Data Processing Server

1) The data processing server of system is mounted in the imaging unit, it performs the data transformation and transmission according to the instruction sent by PC.

2) Imaging Unit

3) The imaging unit is mainly composed of the mechanical system, optical system, electronic and electric systems etc.

The mechanical system includes the platform and motor system etc. The optical system includes the light source, lighting system, projection system. The electronic system includes the data transmission and power supplying system etc.

Parameter:
