CTS computer to screen machine, laser exposure unit, laser screen exposure machine, laser exposure screen printing

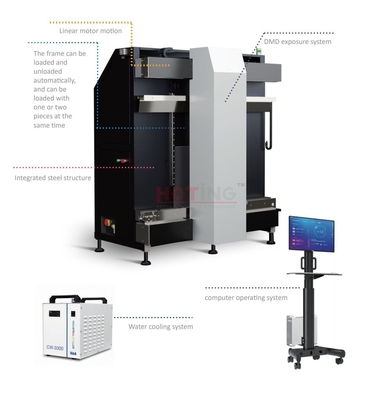

Large Image : CTS computer to screen machine, laser exposure unit, laser screen exposure machine, laser exposure screen printing

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Hoting
Certification:	SGS, ISO9001, CE
Model Number:	CTS-100V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD FOB EXW
Packaging Details:	Solid export wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Units per month

Contact Now

CTS computer to screen machine, laser exposure unit, laser screen exposure machine, laser exposure screen printing

Description

Laser:	DMD DLP	Item:	CTS Computer To Screen
Resolution:	1270DPI, 2540DPI	Application:	Textile, Decal, Label, Decoration, Packaging, PCB Etc

CTS computer to screen machine, laser exposure unit, laser screen exposure machine, laser exposure screen printing 0

Parameter:

Model	CTS-100V
Application	Textile, decal, label, decoration, packaging, PCB etc
Max frame size (mm)	900 X 1000mm (35'' X 39'')
Min frame size (mm)	400 X 400mm (15'' X 15'')
Max exposure size (mm)	800 X 900mm (32'' X 35'')
Screen frame thickness (bespoke service is available)	25 – 45 mm
Imaging system	DMD DLP technology
Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-350μm
Exposure time	120-240s/ ㎡, #350 yellow mesh
Resolution	1270dpi
Raster	UP to 120 line
Focus system	Fixed / Dynamic focusing
File format	1_bit tif etc.
Laser type	UV laser, wavelength 405±5nm
Laser power	20W/25W
Dimension (W X D X H)	1650x971x1840 (65''X38.2''X72.4'')
Weight	1000kg
Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation)
Power	Single phase110v/ 220v, 50/60HZ, 3KW, gas 1L/min
