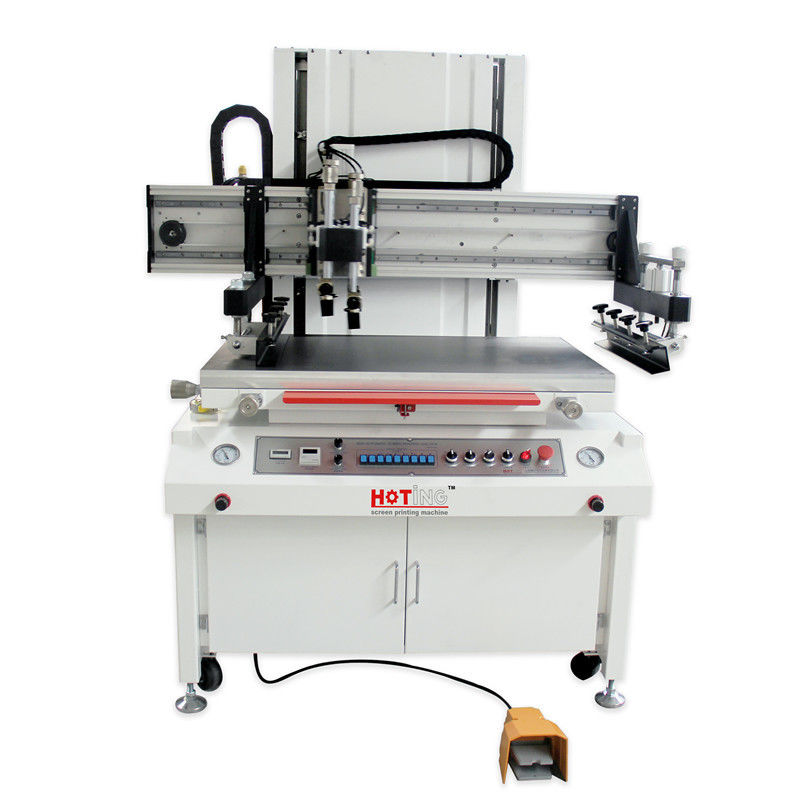

Flat stock screen printing machine, heat transfer screen printer, electric screen printing machine

Application:

This series is suitable for mobile phone panels, membrane switch, PCB, LCD, ceramic decal, metal plates, paper, glass etc printing.

Specification:

1. Motor-driven vertical screen lifting system to prevent any unnecessary ink flow on the screen, small volume of ink can be printed, micro registration and clean very easily.
2. The printing table is facilitated with X-Y-Z fine pitch registration adjustment with self locking system as well as vacuum system.
3. The printing stroke is driven by the advanced digital controlled AC motor. Running on the double parallel high precision Linear Sliding Guide , step less speed adjustment to ensure smooth movement.
4. It is equipped with auto peel-off system, peel-off angle and speed are variable adjustable, guaranteed the printing quality.
5. The printing stroke and sub-frame are variable adjustable and different sizes of printing frame is acceptable.
6. Protection safety device prevents the worker from damage.
7. All key elements use import brand to make sure quality and durability.
8. Microcomputer control of electrical panel, easy to operate, to understand.
9. Touch screen panel is optional.

Parameter:
