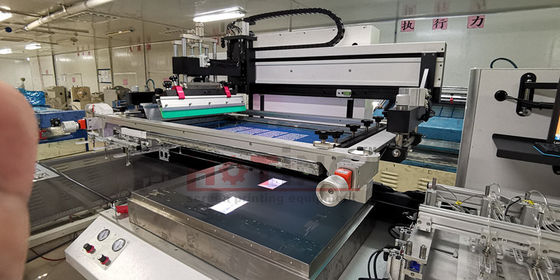

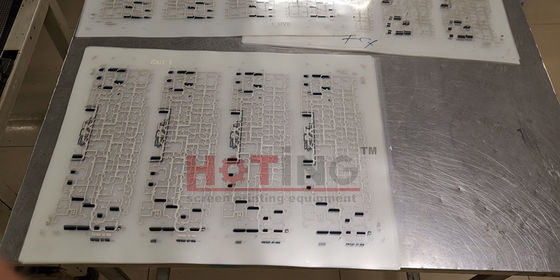

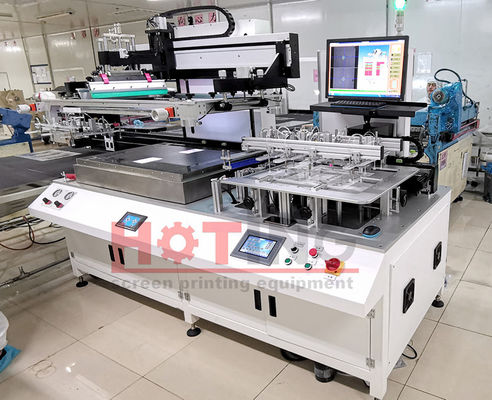

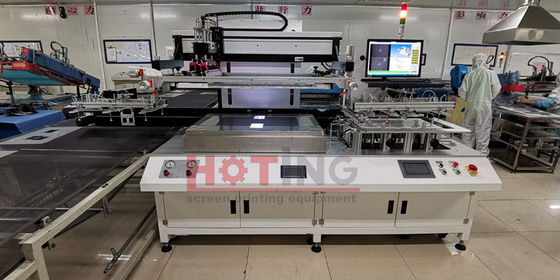

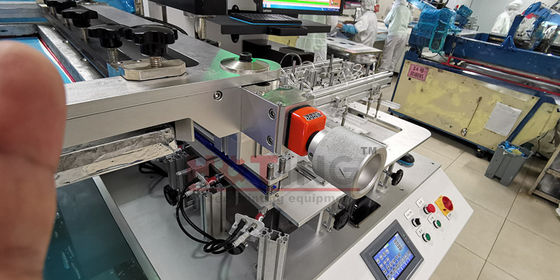

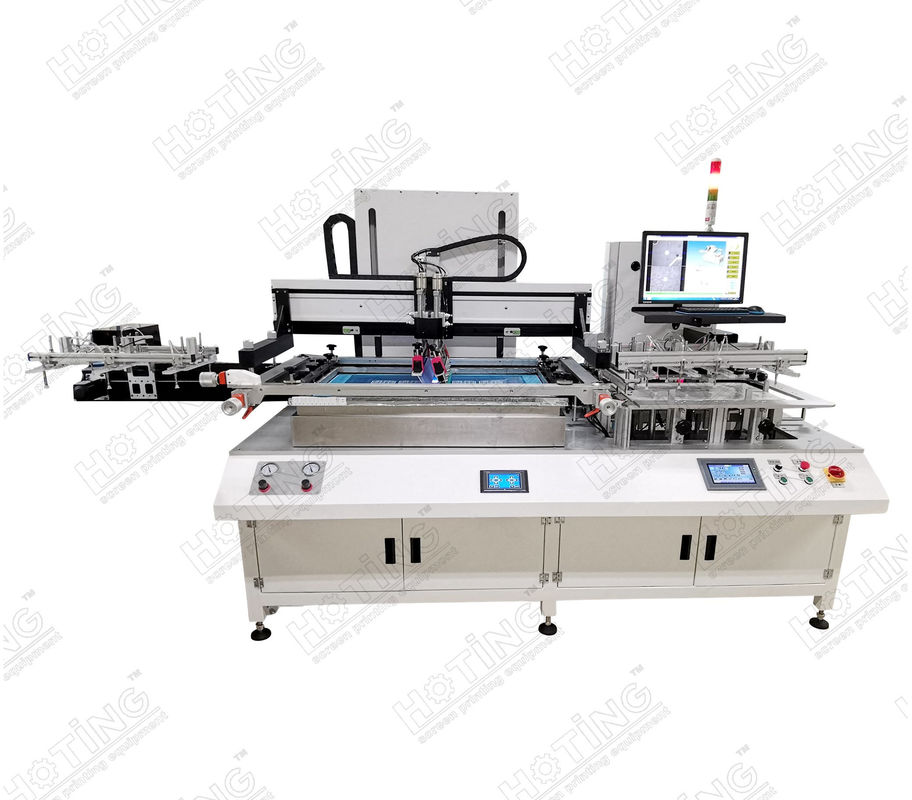

This PTE-5070VL series is suitable for PET, FPC, PVC, conductive film, film and other soft materials high precision screen printing.
Specification:
1. The horizontal slide base is processed by the whole aluminum dosage type, and the operation is light and jitter-free.
2. The screen frame is pneumatically clamped for easy operation.
3. The printing adopts servo motor, which is matched with linear guide rail for fast and stable positioning.
4. HMI touch screen + button switch, can set a variety of functions and parameters, easy to operate.
5. Safety platen, photoelectric switch, emergency stop button, and thorough safety protection.
6. With security reset, automatic debugging system, safety light barrier, emergency stop button, warning light column and other security design.
7. CCD automatic positioning printing, can automatically adjust the field of view of the CCD according to the size of the material.
8. CCD automatically calculates the spatial position of the material and the screen according to the Mark point on the material, and instructs the motor motion control adjustment platform X, Y, θ rotation to automatically position and print.

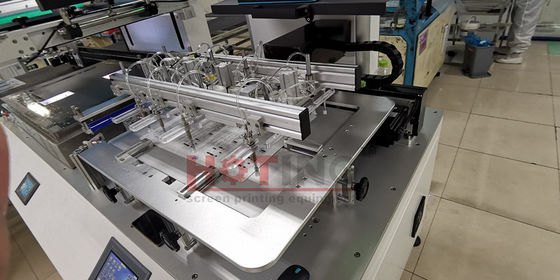

9. The robot uses the whole stack of materials to automatically separate materials, automatically remove dust, and automatically alignment print on the printing machine.
10. The thickness of the material divided by the robot is 0.05mm~5.0mm. The direction of the mechanical hand is printed from right to left.
11. The splitting method adopts half-sheet detachment, and the whole body is shaken after static electricity removal.
12. Can be customized according to customer requirements to meet different usage requirements.
13. Compact equipment shape and low noise design effectively improve the impact on the work space and environment. .
14. The body is electrostatically sprayed and painted to ensure the durability and corrosion resistance of the body.
Parameters:
| Model |
PTE-5070VL |
| Table size |
600×850mm |
| Max. printing area |
500×700mm |
| Min. printing area |
250×250mm |
| Material thickness |
0.05-0.5mm |
| Printing table level accuracy |
±0.08mm |

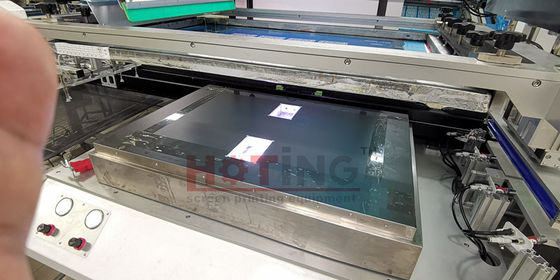

| Printing table vacuum area |
500×700mm |
| Suction hole size |
∮0.8mm |
| Suction hole distance |
15×15mm |
| CCD area |
330mm(X:±80mm ±40mm) Y:±40mm)
|
| CCD camera area |
12×9mm |
| Alignment camera number |
2 |
| CCD alignment accuracy |
±0.005mm |
| Printing accuracy |
±0.02mm |
| Auto alignment time |
﹤0.2sesond |
| Max. frame size |
800×1100mm |
| Aluminum profile thickness |
30-40mm |
| Table height |
900±30mm |
| Squeegee pressure |
1-6kg |
| Screen peel off height |
0-10mm(manual) |
| Screen distance to printing table |
0-15mm |
| Printing stroke |
0-700mm |
| Squeegee angle |
±40° |
| Voltage |
220/380V 3∮220v/380v,50/60Hz |
| Electricity power |
3.5kw |
| Air supply |
5-6kg |
| Air consumption |
2.6L/Cycle |
| Approx. weight |
1500kg |
| Dimension(W*D*H) |
3400*1260*1980mm |
| ★ Can be customized according to customer requirements to meet different usage requirements. |
